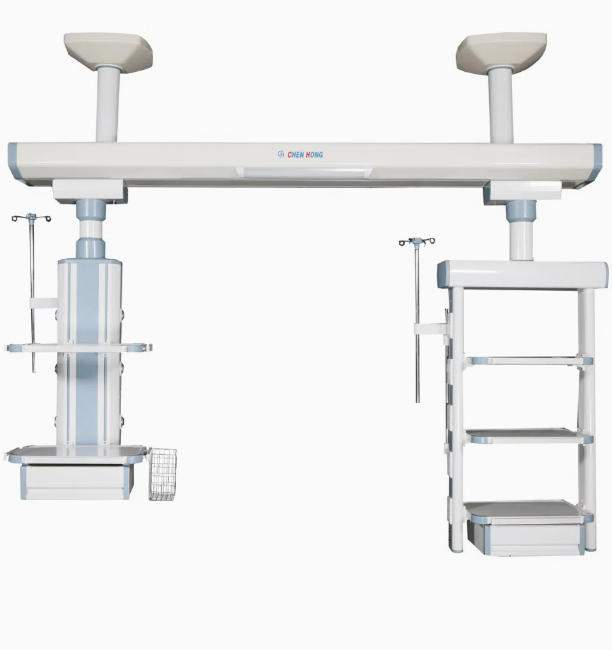

Surgical Ceiling Suspension Tower ICU Cantilever Electric Medical Vertical Pendant

Product introduction: 1.Operating power: AC220V, 50HZ;

2.Beam length: 2800~3000mm (subject to user's measurement at site);

Lighting lamp: 1;

3.Optional braking device, the equipment does not drift and can move easily when the device is released;

4.Hanger type dry section pendant: 1 (left and right moving distance: 500mm). The configuration is as follows:

(1)Instrument deck: 3 layers (height adjustable), 550×400*30mm optional; use 10mm×25mm side rail of international standards for protection with rounded-corner collision avoidance design;

(2)Standard configuration of gas terminal: (2 for oxygen, 2 for suction, 2 for air) may be per the hospital's requirements

a.Different interface colors and shapes, with faulty connection prevention function;

b.Plugging and unplugging times: over 20,000;

c.Adopting secondary seal with three states (on, off and remove), which can be maintained with gas;

(3)Multifunctional power sockets: 8, 220V

(4)Grounding terminals: 2;

(5)Network interface: RJ45, 1; telephone interface: 1

(6)Lighting lamp: 1;

(7)Drawer: 1;

(8)Stainless steel adjustable infusion rod holder: 1;

(9)Stainless steel adjustable injection pump rack:1;

(10)Rotation angle: 0~340°;

(11)Net load weight of dry section pendant: ≥80kg;

(12)All gas terminals, power interfaces and weak current interfaces are placed on the terminal box, electricity and gas are separated and the power supply and gas source are installed on the aluminum column of the pendant body, respectively.

5.Column type wet section pendant: 1 (left and right moving distance: 500mm). The configuration is as follows:

(1)Standard configuration of gas terminal: (2 for oxygen, 2 for suction, 2 for air) may be as per hospital's requirements

a. having faulty connection prevention function; b. plugging and unplugging times: over 20,000;

c. adopting secondary seal with three states (on, off and remove), which can be maintained with gas

(2)Multifunctional power sockets: 8, 220V;

(3)Grounding terminals: 2;

(4)Stainless steel adjustable infusion rod holder: 1;

(5)Stainless steel adjustable injection pump rack:1;

(6) Storage basket: 1;

(7)Rotation angle: 0~340°;

(8)Power interfaces placed on both sides of the pendant, gas source distributed on the back side of the pendant, thus fully realizing separation between electricity and gas and ensuring the safety of equipment use.

6.The main material is high-strength aluminum alloy profile;

7.Surface is finished by electrostatic spraying.Gas Terminal Durability20000 timesGas Terminal6 pcsSocket8 pcsNetwork Port1 pcEquipotential Ground Terminal2 pcs
